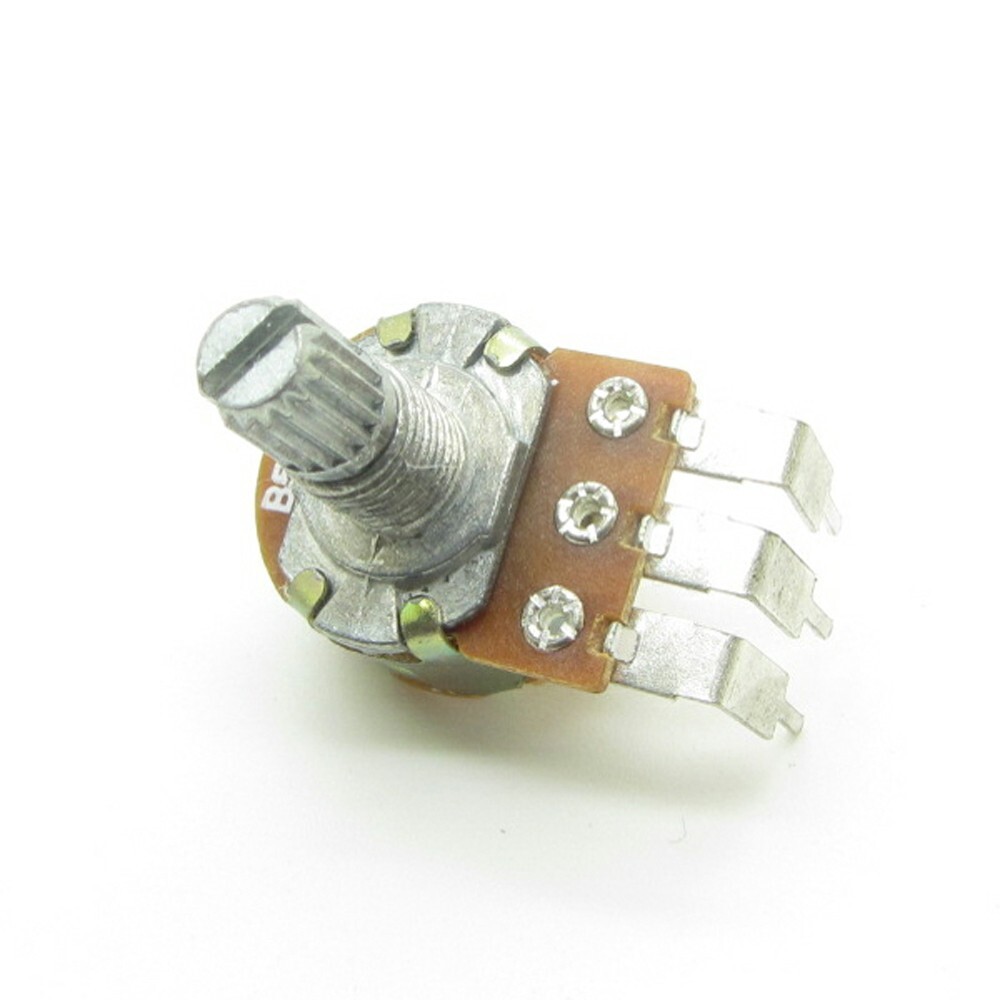

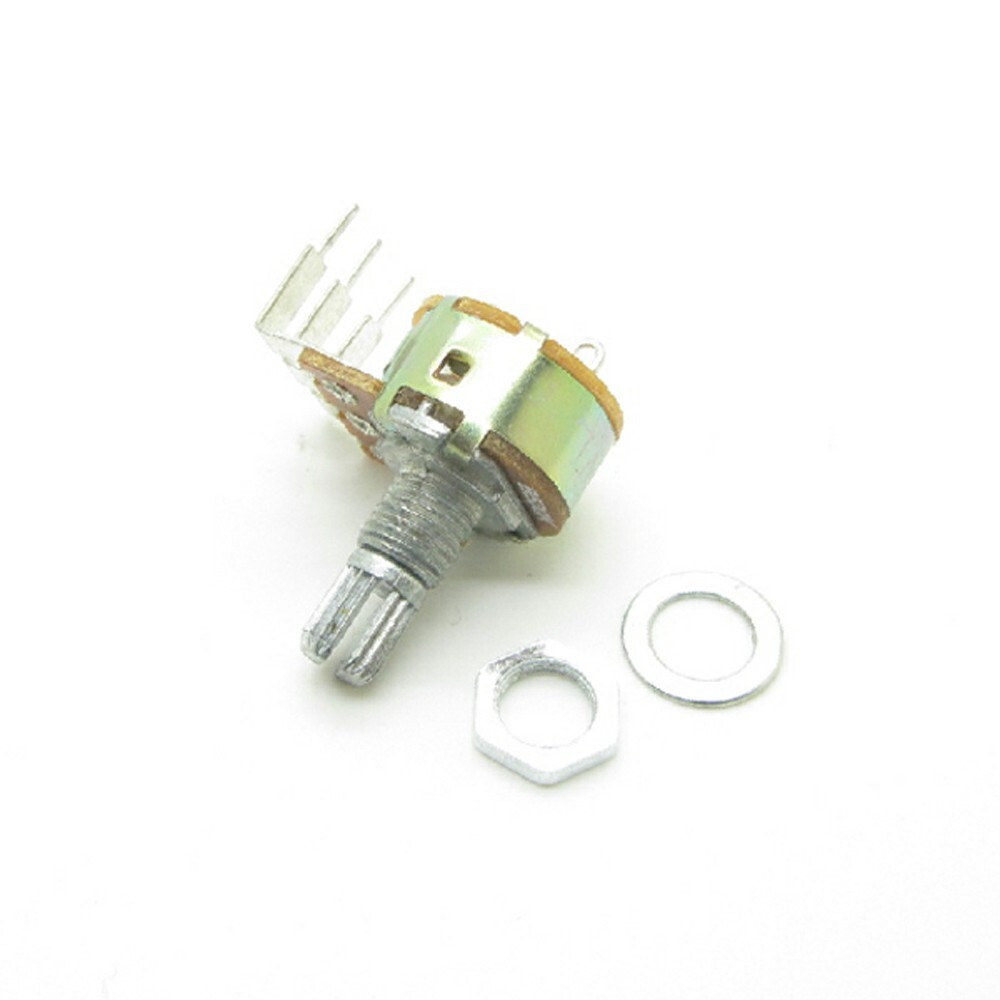

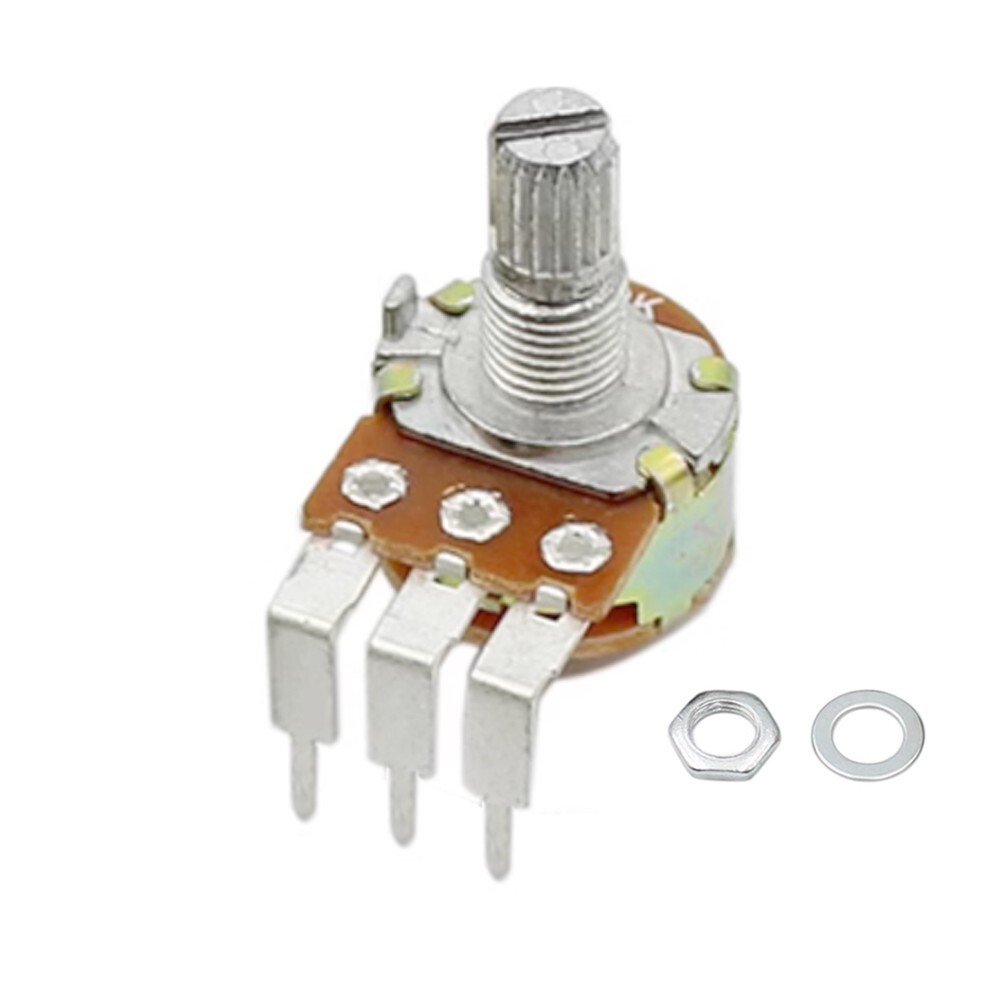

US Stock 10PCS Rotary Potentiometer With Switch ON/OFF Right Angle 3-Pin 1k-500k
USD 12.50 USD
Specifications
| Resistance | 5K ohm |
| Mounting Style | Panel Mount |
| Power Rating | 250 mW |
| Termination Style | Pin |
| Material | Carbon Film, Copper |
| MPN | WH148-W |
| Minimum Operating Temperature | -55 °C (-67 °F) |
| Brand | Unbranded |
| Tolerance Rating | ±20 % |
| Manufacturer Warranty | 1 Year |
| Maximum Operating Temperature | 125 °C (257 °F) |
| Resistance Rating | 1K 5K 10K 50K 100K 500K |
| Duty Cycle | 20% |

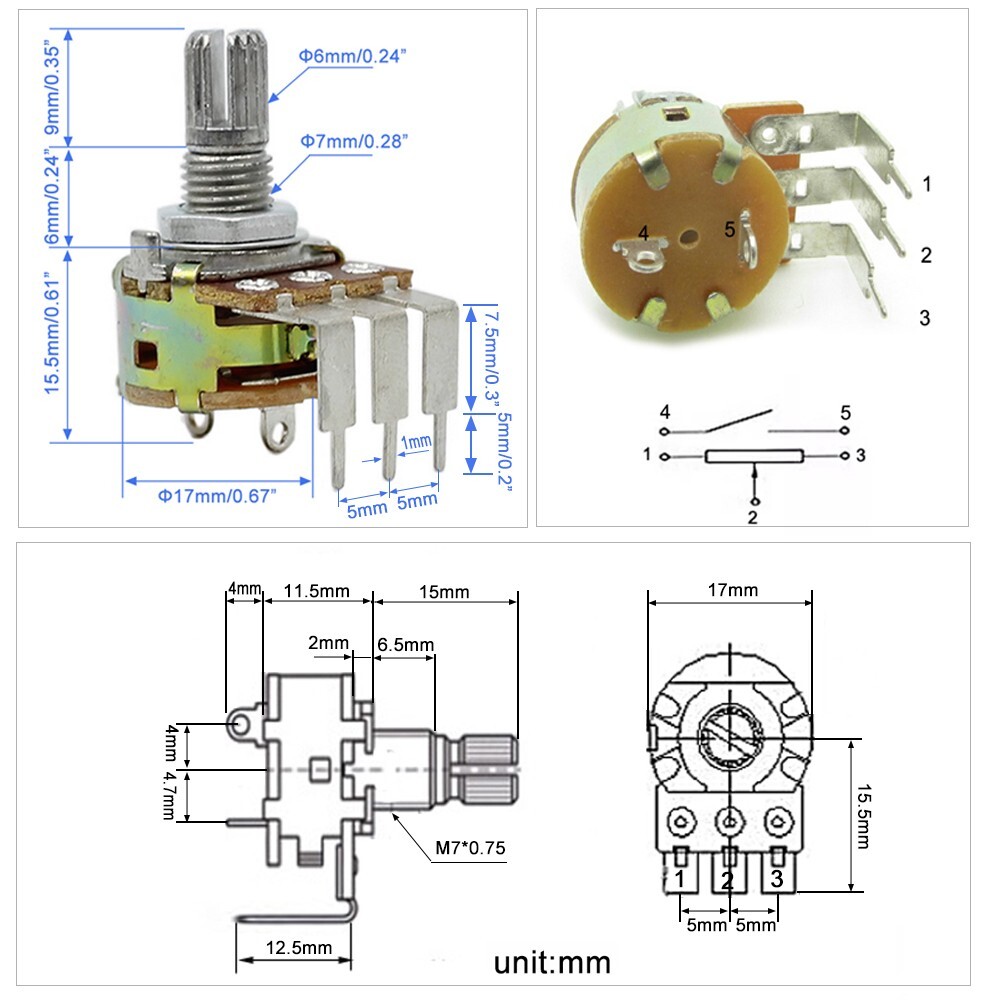

Total rotation angle:300±5 degree. Turn:single turn. Shaft length:15mm/0.6". Switch Max. Mounting hole:7mm/0.28". - Switch: Automatically turns OFF at minimum position.
