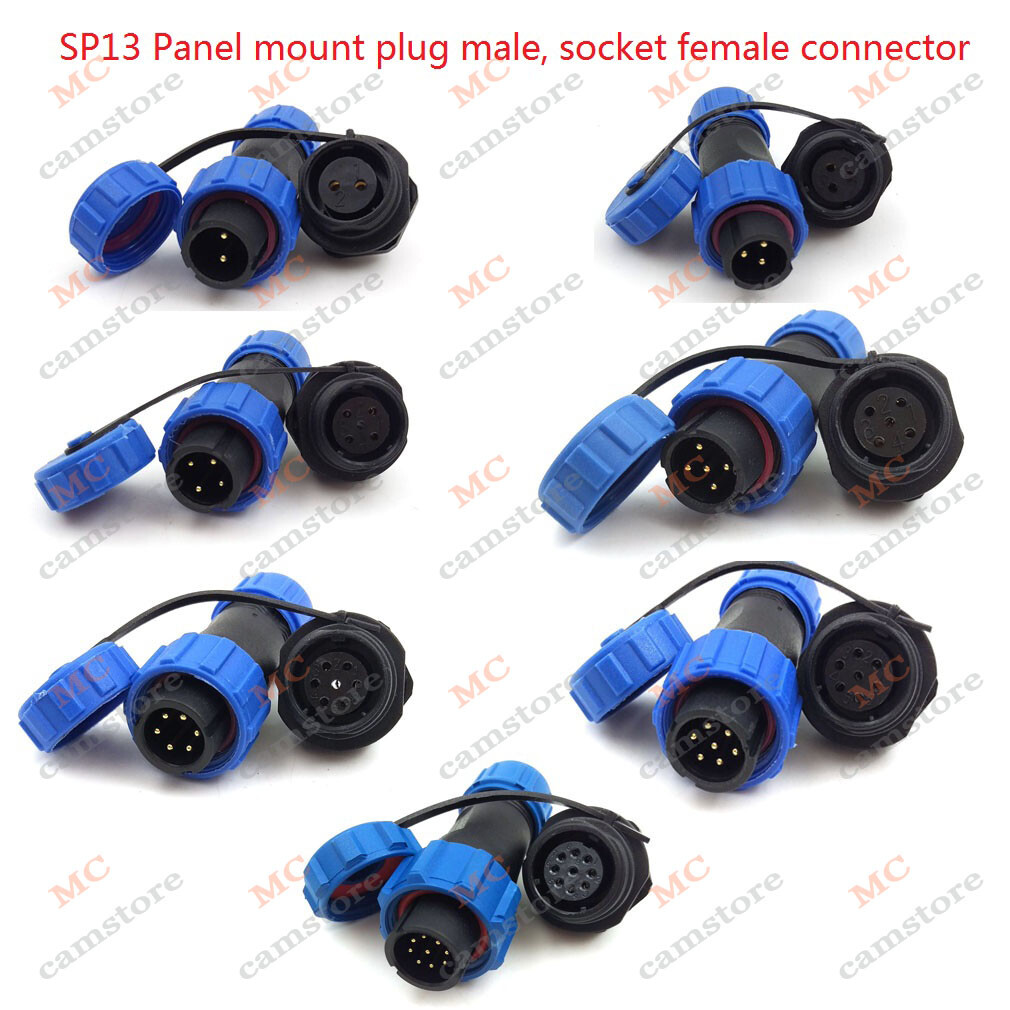

SP13 IP68 Waterproof 2 3 4 5 6 7 9 pin Plug and Socket Cable Connector Aviation
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Sealing Ring | silica gel |
| Mechanical Life | more than 500 times |
| MPN | SP13 |
| Housing Gender | male female seat |
| Current Type | AC /DC |
| Number Of Ports | 2 3 4 5 6 7 9 |
| Termination Type | Solder |
| Number Of Pins | 2 3 4 5 6 7 9 pin |
| Contact Material | Brass with gold plating |
| Compatible Mounting Type | Threaded |
| Applicable Wire Diameter | diameter  3-6mm |
| Shell Material | thermoplastic PA66 |
| Color | Black + blue |
| Connection | thread connection |
| Material | Plastic |
| Brand | Unbranded/Generic |
| Type | Circular Connector |
| IP Rating | IP68 |
| Sealing: | in line with IP68 |
| Connector Style | power connector |
| Model | IP68 plug socket |
| Country/Region Of Manufacture | China |
Store category Sign Up Now ! You may also like SP13, 2 3 4 5 6 7 9pin waterproof connectors, aviation power connector US stock Product Description Number of Ports 2 Compatible Mounting Type Threaded Country/Region of Manufacture China Connector Style power connector Number of Poles 2 Number of Pins 2 3 4 5 6 7 9 pin Type Circular Connector Model IP68 plug socket Contact Material Brass with gold plating MPN SP13 Gender Plug-male socket-female, Plug-female socket-male Current Type AC /DC IP Rating IP68 Shell material thermoplastic PA66 Insulator thermoplastic PPS high temperature resistant 260 Sealing ring silica gel Housing gender male female seat Connection thread connection Operating temperature -25 degrees C~110 degrees C Relative humidity 90%~95% (40 + 2 degrees C) Brand Unbranded/Generic Sealing: in line with IP68 Applicable wire diameter diameter 3-6mm Mechanical life more than 500 times Color Black + blue Termination Type Solder Material Plastic SP13 2 3 4 5 6 7 9pin waterproof connectors, IP68 aviation power connector Specifications for 2pin, 3pin: Rated Current (A): 13A Contact diameter × number: Φ1.6x2 / Φ1.6x3 Rated voltage (AC.V.): 250V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 2mΩ Cable specification: <2m㎡/14AWG Specifications for 4pin 5pin, 6pin 7pin: Rated Current (A): 5A Contact diameter × number: Φ1.0x4 / Φ1.0x5 / Φ1.0x6 / Φ1.0x7 Rated voltage (AC.V.): 200V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 5mΩ Cable specification: <0.785m㎡/18AWG Specifications for 9pin: Rated Current (A): 3A Contact diameter × number: Φ0.7x9 Rated voltage (AC.V.): 125V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 10mΩ Cable specification: <0.785m㎡/18AWG Coupling: Threaded Coupling Shell Materia: Nylon66, fire resistance:V0 Insert Material: PPS man temperature 260° Contact materia: Brass (gold-plated) Termination: solder Cable outer diameter range：A4-6.5mm, B5-8mm Protection level: IP68 Durability: ≥500 times Working temperature: -25℃～85℃ Insulation resistance: 2000MΩ What's in the package: 1 plug +1 socket Payment Delivery details Terms of sales About us Contact us Payment We accept Paypal and credit card or debit cards payment. Any payment problem, please send us message, we will do out best to solve the problem! Delivery details All orders will be shipped by China Post with tracking number, and you can track your package online. US orders reaches in 7-12 working days, international orders will take 11-35 working days. Any order over 300USD will enjoy a express shipping, we cooperate with DHL/UPS/FEDEX/EMS, it takes 3-7 working days for shipping. Orders less than 300USD, please choose expedited when making payment, we will arrange express shipping for your order. Terms of sales All the products can be shipped all over the world, if your country is not on the list, please contact us. All the free shipping item will be shipped by China Post. Order from same client will be shipped together unless we got your massage about the depart shipping note. About us MCcamstore is a whoeleseller supplying all kinds of waterproof connectors, metal connectors, aviation connector, heavy connectors and other connectors. Every single item tested before it sent out, and those cable has been widely used by our domestic clients and all over the world, all those connectors turned out to be high quality, and excellent working. We promise to sent out any of the orders in time, and guarantee you your orders will be delivered successfully. If you have any question, we will be reply you in 24hours. Open hour: 0:00-24:00/day Monday-Sunday/month Contact us Any question you have about the order / products / shipping / payment / after-sale , please feel free send us message, we will reply in 24hours. Your feedback about our product and service is very important to us. If there is problem about the order or the product, please let us know, we will do our best to solve the problems, and make a happy transaction. Please do not leave any negative feedback before we solve your problem, thank you so much! Feedback
