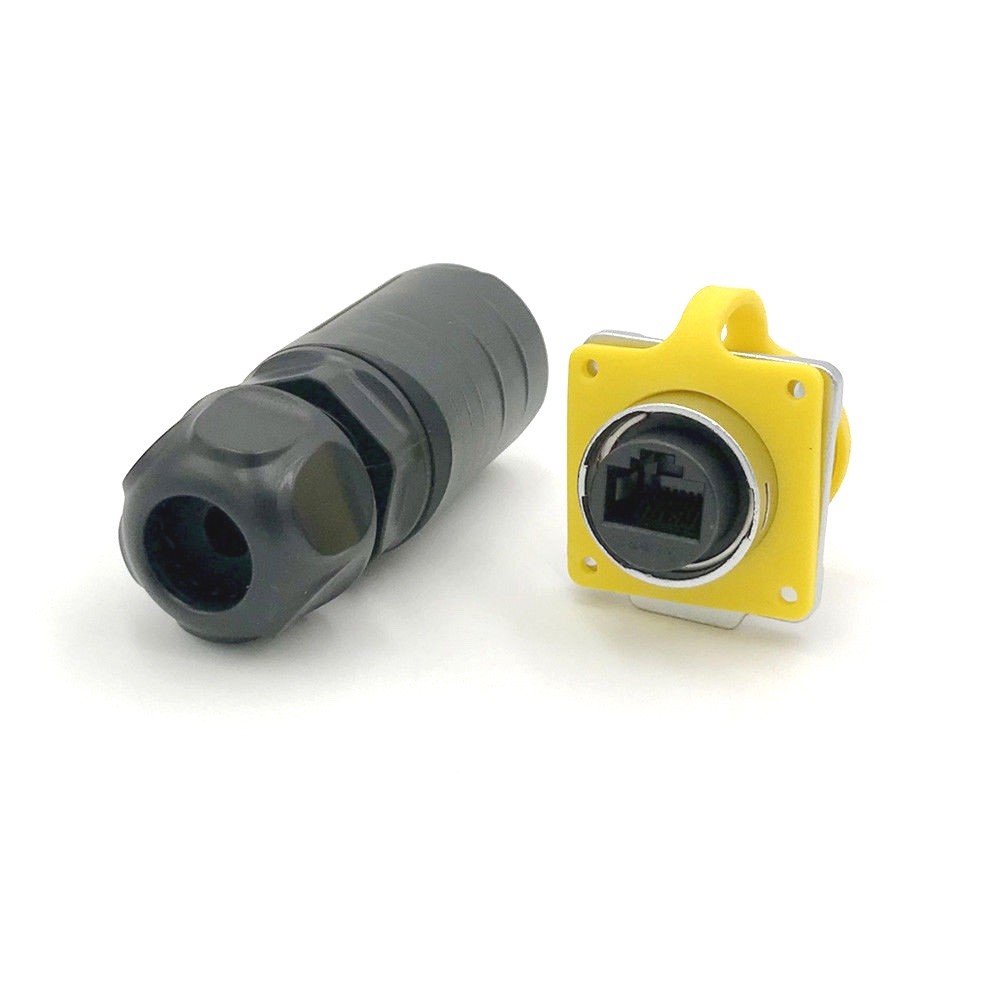

CNLINKO Ethernet Circular Connector RJ45 Plug & Socket Outdoor Waterproof IP67
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Compatible Wire Gauge (AWG) | 26-24 AWG |
| Country/Region Of Manufacture | China |
| Minimum Operating Temperature (Actual) | -40°C |
| Minimum Operating Temperature (Nominal) | -40°C |
| Maximum Operating Temperature (Nominal) | 80°C |
| Connecting Mode | Plug/Unplug |
| Certificate | UL, CE, RoHS |
| Maximum Operating Temperature (Actual) | 80°C |
| IP Rating | IP67 |
| Body Material | ABS & Zinc |
| Brand | CNLINKO |
We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Items Model Number: Plug: LP-24-C/RJ45/015/PE-41-001Socket: LP-24-J/RJ45/213/SX-43-401 Features: ● Low and stable contact resistance● Zinc alloy shell material, high-frequency noise immunity and electromagnetic interference protection ● Snap-fastener lock, easy and simple operation, safe and stable● Our unique patented design--direct type ports avoid PCB switch and PCB solder● Clamp design with silicone material -soft and extension ,protect cable well● Protection level:IP67● Not include crystal head and cable Specification: Cable specification0.15m㎡～0.2m㎡/26-24 AWGDiameter range Φ5.5mm～Φ7mmContact diameter × number8PINRated Current (A)1.5AOperating voltage (AC.V.rms)/Contact resistance<30mΩTemperature rise/ Withstanding Voltage (AC.V) 1 minute1000VInsulation resistance＞500MΩProtection level IP67Durability ＞500 timesWorking temperature-40℃～80℃Connecting mode/Assembly wirePlug/unplugHousing, the insulating parts High-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome)Copper needlesCopper alloy (gold-plated 6U) Waterproof circleSilica gelFlammability ratingUL94-V0 LP-24 Series Specification Sheet
