10 AWG Battery Cable O Ring Terminal PV Wire for Inverter Solar Car Marine RV
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Color | Multicolor |
| Material | Copper |
| Brand | SEBATECH |
| Unit Type | Unit |
| Termination Type | Crimp |
| Connector Style | Ring |
| Contact Material | Copper |
| Compatible Wire Gauge (AWG) | 6-10 |
| Compatible Mounting Type | Wire |
| Country/Region Of Manufacture | United States |

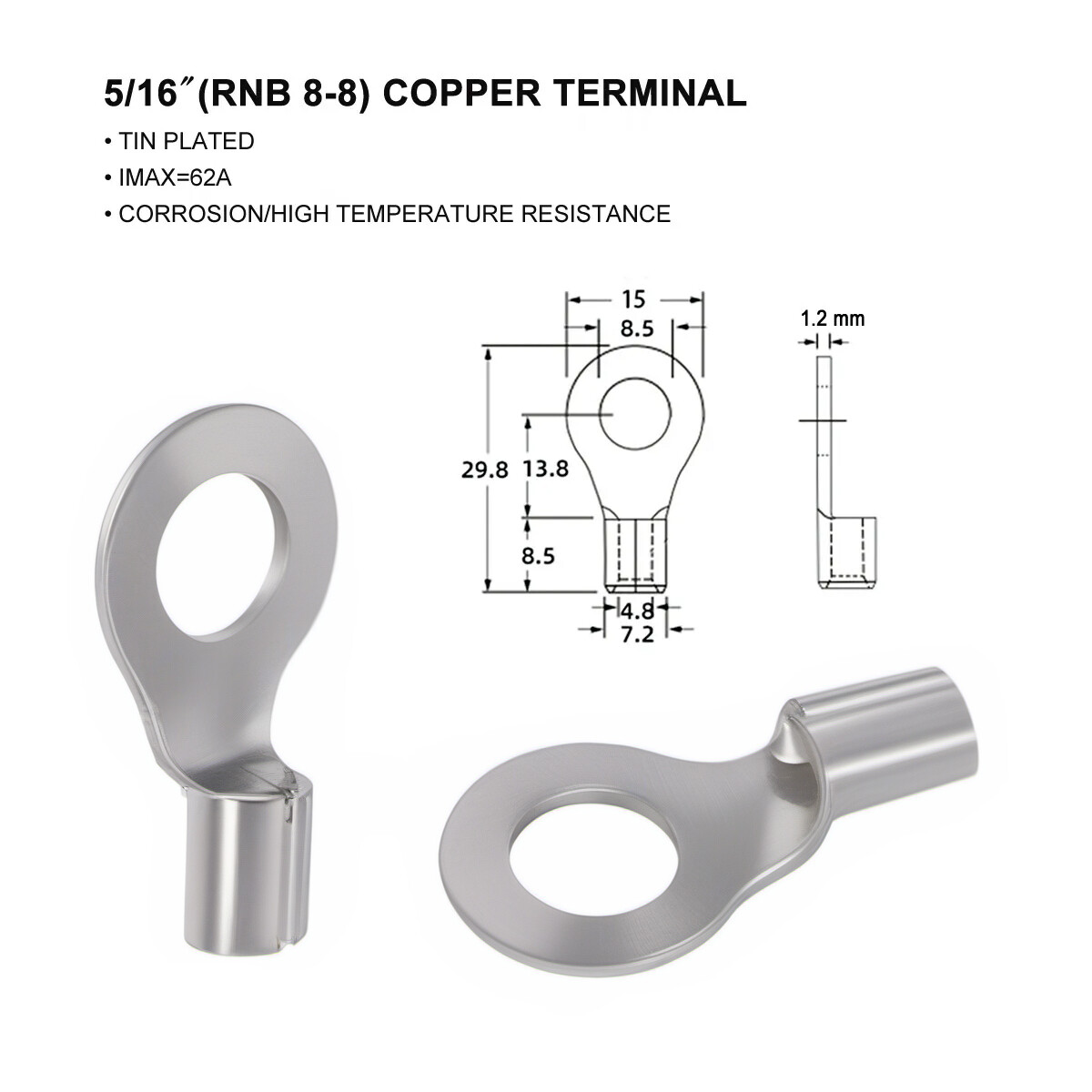

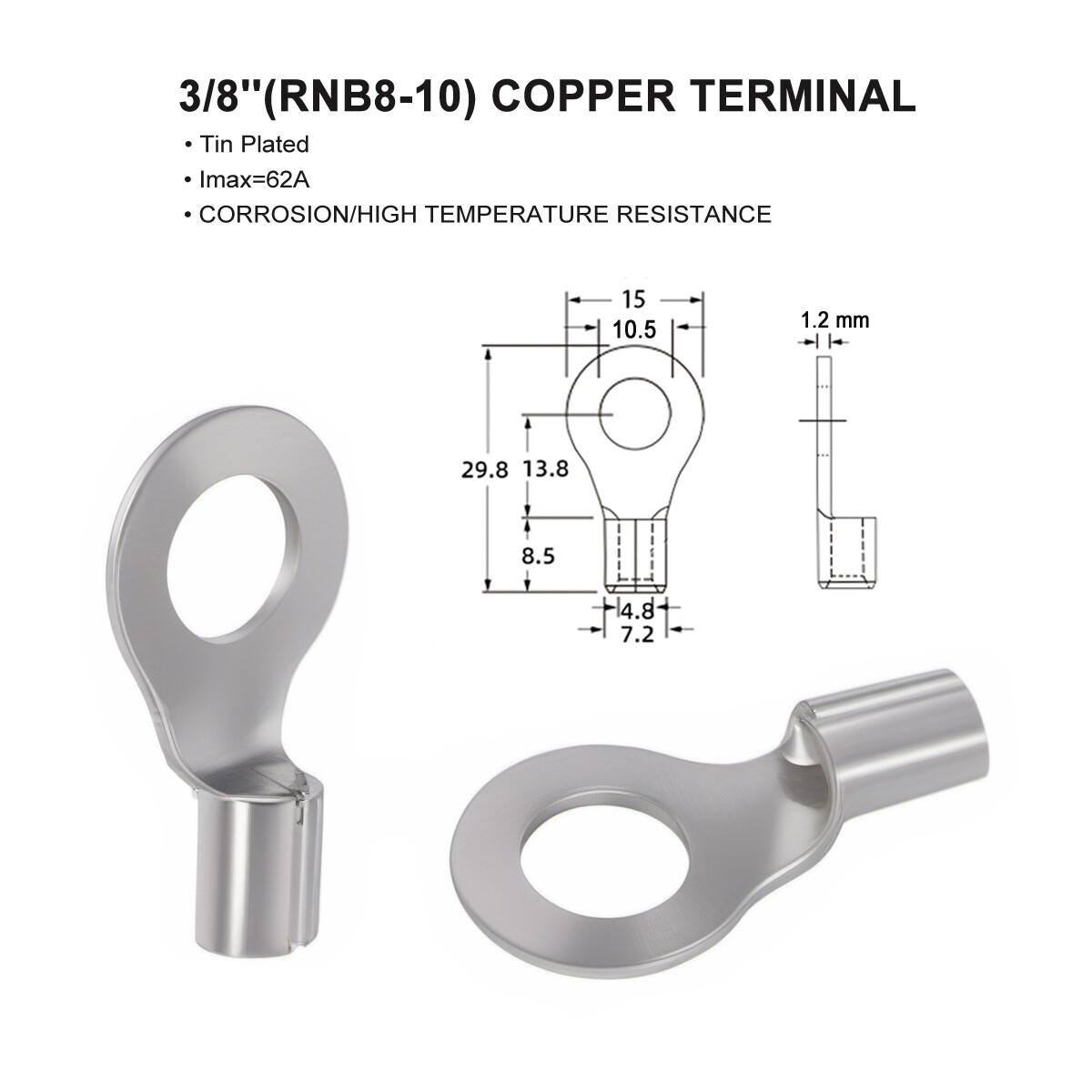

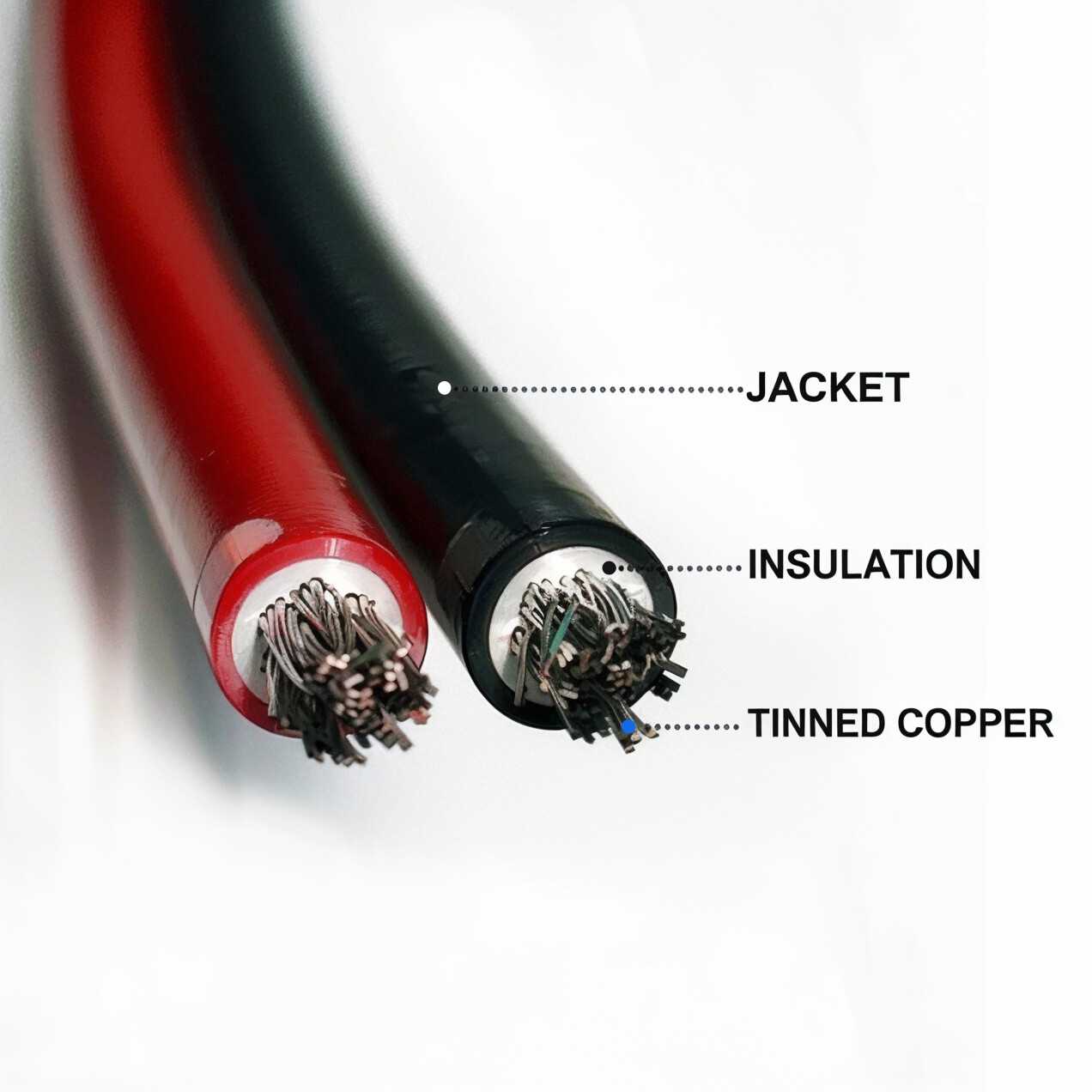

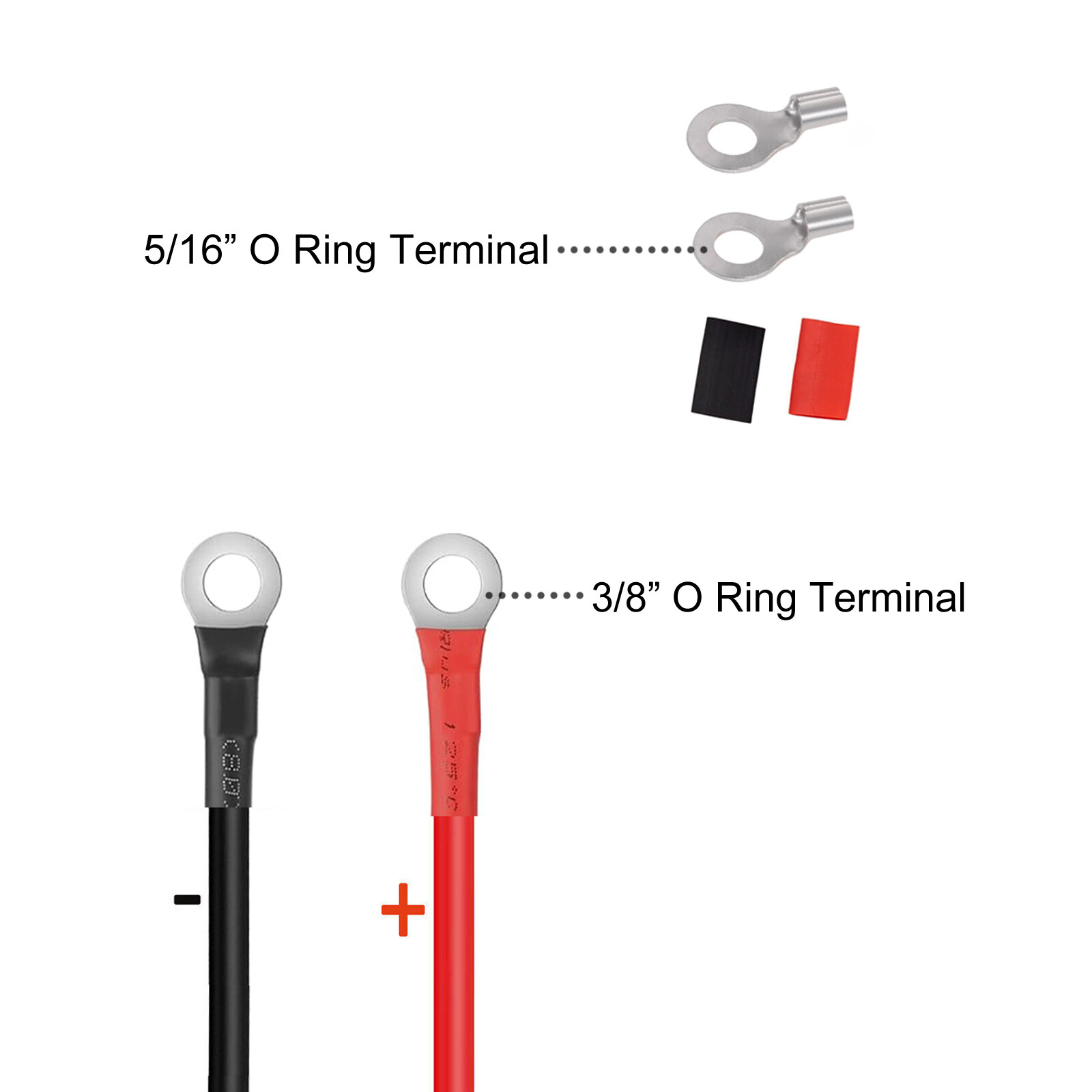

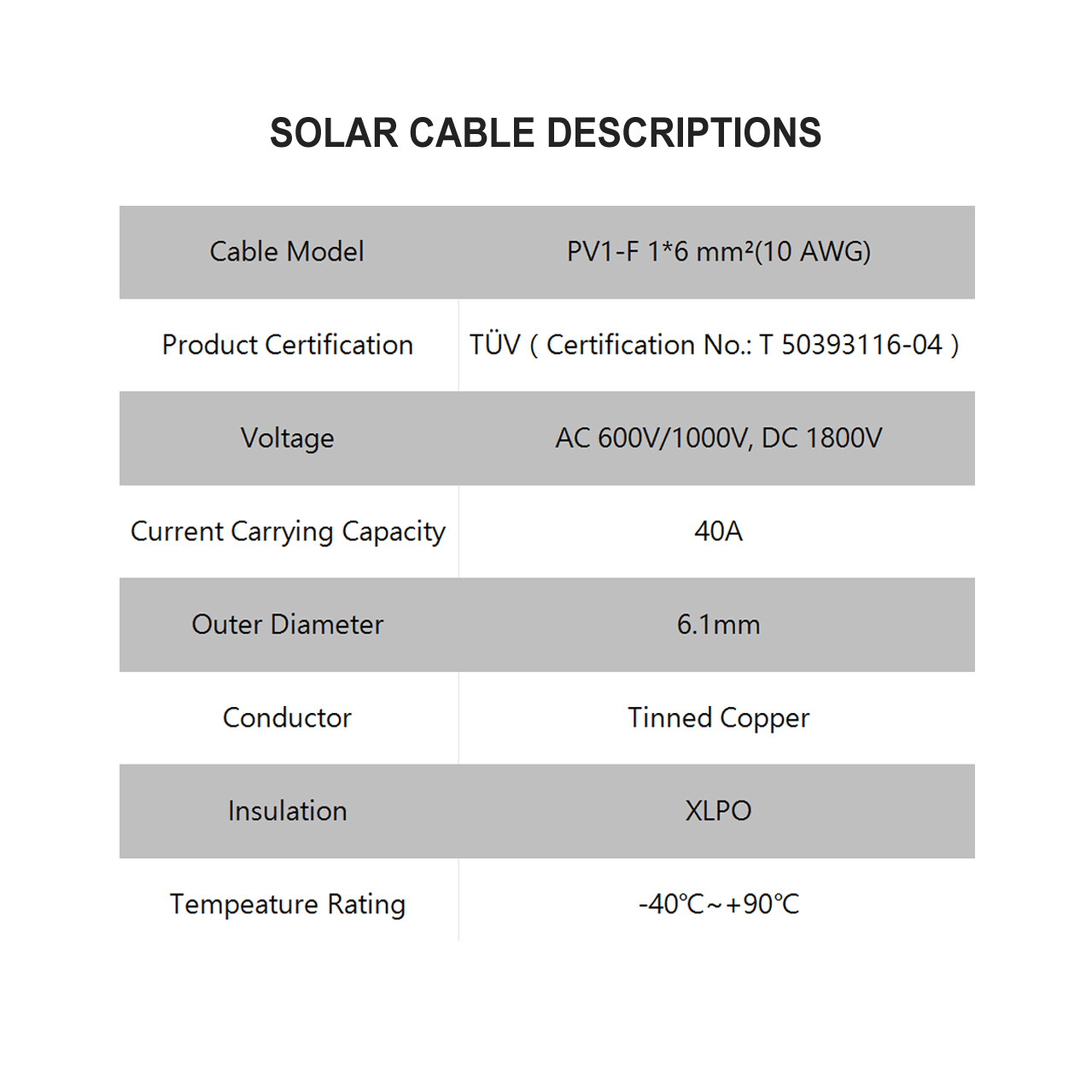

10 AWG 3/8" O Ring Terminal Cable + One Pair 5/16" Terminal ăCable SpecificationsăWire Gauge: PVF-1 1*6mm² (10 AWG). Outer Diameter: 6.1 mm. Voltage Rating: AC 600 V/1000 V, DC 1800 V. Max. Current carrying capacity: 40 A. Cable Certification: TĂV (Certification No.: T 50393116-04). Temperature Rating: -40â to 90â. Service Life: 25 years. Fire-resistance performance: IEC 60332-1. ăWire Materială Conductor: Tinned copper wire, in compliance with EN 60228, IEC 60228 Class 5. Insulation: halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, white. Jacket: Halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, black/red. ăO Ring Terminală3/8" O Ring Terminal is crimped at one end of the wire, the other end is bare wire. Comes with extra one pair of 5/16" terminal. Made from Copper tinned plated resisting corrosion and high temperature. Imax=62A.ăAdvantagesăCable oxidation resistance, Halogen-free, flame retardant, low toxicity. Low smoke and halogen-free insulation and Jacket, in compliance with ROHS environmental performance. ăEnvironment ResistanceăThe Jacket is UV, ozone and hydrolysis resistant. High resistance against UV, Ozone, heat, fire, cold, oil, abrasion, fluids, salt etc.ăApplicationsăApplied in most battery packs, storage batteries, solar generator, inverter, car, marine, truck, RV etc.ăPackage Includedă1 * Black & Red O Ring Terminal Cable(Different lengths optional)
